Calcium, Mineral Deposits and Scale Removal

Calcium, Mineral Deposits and Scale Removal

Precision Water Jet Cutting

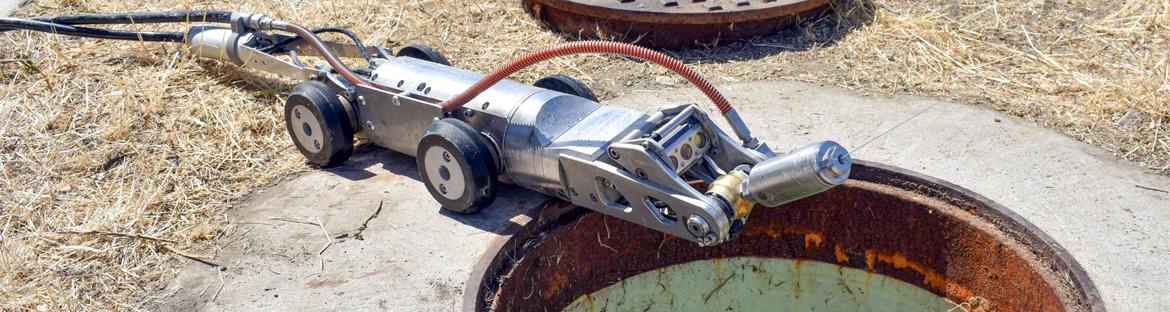

Precision Water Jet Cutting applies a High Pressure/ Low Volume Water Jet from a special designed transporter, featuring a Pan & Tilt nozzle and CCTV camera module, to remove deposits settled and solid obstructions from within 6" - 36" (150-900mm) pipes and service lateral connections.

Up to 32,000psi Precision water jet cutting removes: grease films, debris, tree roots, hardened fat, solidified grease, cement, scale, tuberculation, corrosion, years off mineral deposits and calcium build- up, grout and over- poured concrete for the elimination of obstructions and to prepare pipes for rehabilitation.

With eyes on the job, continuous adjustment of pressure, angle of attack and distance to material enable the operator to achieve the breakdown and elimination of various obstructions without adding damage to the pipe structure.

Precision water jet cutting

  • Powerful
  • Controlled
  • Eyes on the job



Precision Water Jet Cutting Modules

The available modules for precision water jet cutting are: WJ125 for 6" - 15" (150-375mm), WJ160 for 8" - 15" (200-375mm), WJ180 for 8" - 20" (200-500mm) and WJ190 for 10" - 36" (250-900mm). Click products for technical specifications.

WJ125 Precision water jet cutting module WJ160 precision water jet cutting module WJ180 precision water jet cutting module WJ190 Precision water jet cutting module



Scale Removal

Obstruction(s): Scale and Tuberculation
Pipe Diameter: 8" (200mm) and 16" (400mm)
Pipe Material: Cast Iron
Water Pressure: 7,250psi (500bar)
Used ID-tec Equipment: R160 transporter, WJ180 Precision Water Jet Cutting Module with Rotary Nozzle, WJR200 Rotating Lances, CP3D Control Unit, MH Cable and Hose reels, HDM37 High Pressure Unit, Vehicle Installed



Calcium Removal

Obstruction(s): Calcium build-up
Pipe Diameter: 8" (200mm)
Pipe Material: Coated VCP
Water Pressure: 7,250psi (500bar)
Used ID-tec Equipment: R160 transporter, WJ180 Precision Water Jet Cutting Module, CP3D Control Unit, MH Cable and Hose reels, HDM37 High Pressure Unit, Vehicle Installed





Contact ID-tec or your local distributor for more information!
