Precision Water Jet Cutting Module

Precision Water Jet Cutting Module

WJ180 - 8"-20" (200-500mm)

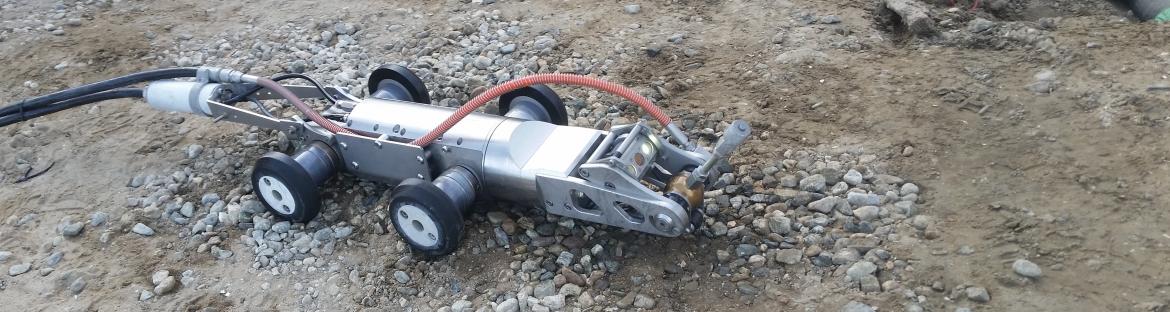

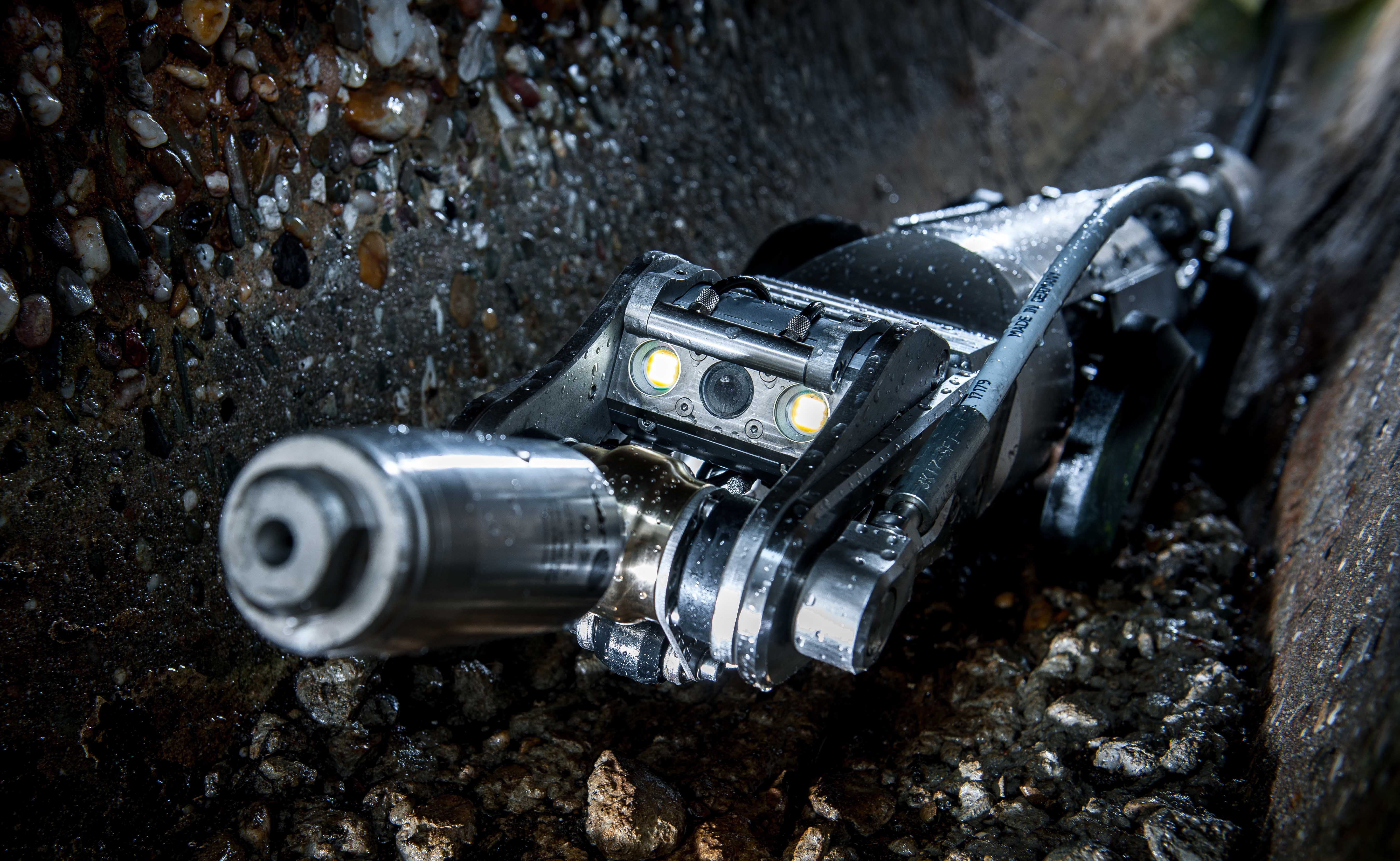

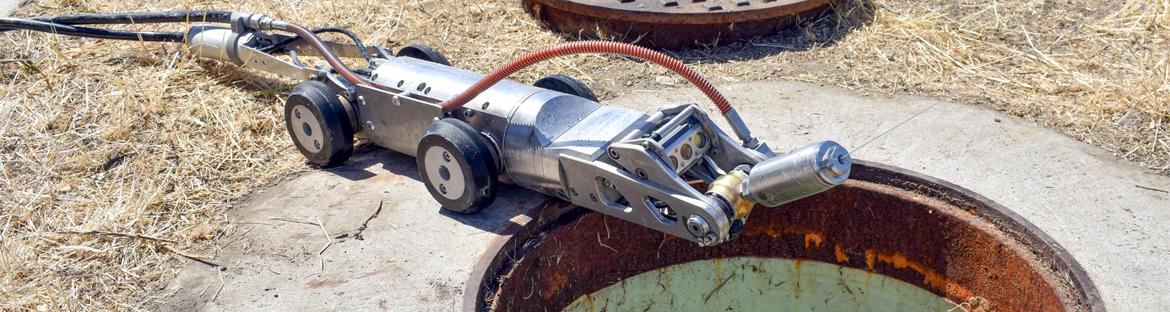

The WJ180 Precision Water Jet Cutting module is compatible with the R160 Transporter for removing root balls, hardened fat, grease, cement, scale, calcium and mineral build- up and over- poured concrete from within 8" - 20" (200-500mm) pipes. The WJ180 module has a pan and tilt nozzle- attachment at the front that can be used with a variety of nozzles and water pressures up to 43,500psi (3000bar). The water jet cutting module features a camera with LED lighting that moves with the nozzle for clear vision through the cutting process.



Contact ID-tec or your local distributor for more information!

Download brochure

Precision Water Jet Cutting Module

WJ180 - 8"-20" (200-500mm)

The WJ180 Precision Water Jet Cutting module is compatible with the R160 Transporter for removing root balls, hardened fat, grease, cement, scale, calcium and mineral build- up and over- poured concrete from within 8" - 20" (200-500mm) pipes. The WJ180 module has a pan and tilt nozzle- attachment at the front that can be used with a variety of nozzles and water pressures up to 43,500psi (3000bar). The water jet cutting module features a camera with LED lighting that moves with the nozzle for clear vision through the cutting process.

Specifications

Scope of use: 8" - 20" (200-500mm)
Water pressure: max. 43,500psi (3000bar)
Nozzle tilt: 90°

Features

  • Heavy- duty materials
  • Compatible with rotary and cutting nozzles
  • Rotating color camera
  • Air and water lens cleaner
  • Sapphire lenses
  • Twist-and-lock mechanism
  • Adjustable LED lighting
  • Compatible with rotating lances descaling tool

Specifications

Scope of use: 8" - 20" (200-500mm)
Water pressure: max. 43,500psi (3000bar)
Nozzle tilt: 90°

Features

  • Heavy- duty materials
  • Compatible with rotary and cutting nozzles
  • Rotating color camera
  • Air and water lens cleaner
  • Sapphire lenses
  • Twist-and-lock mechanism
  • Adjustable LED lighting
  • Compatible with rotating lances descaling tool
