Diamond Taper Milling Cutter

The Diamond Taper Milling Cutter is a, rotation optimized, diamond reinforced, cutter bit for preparing cracks, joints and laterals and milling of deposits and intruding laterals in most materials, including concrete and cast iron. The cutter bit has a very high diamond density and a very high service life. Different sizes are available for 8"-24" pipelines.



Contact ID-tec or your local distributor for more information!

Diamond Taper Milling Cutter

The Diamond Taper Milling Cutter is a, rotation optimized, diamond reinforced, cutter bit for preparing cracks, joints and laterals and milling of deposits and intruding laterals in most materials, including concrete and cast iron. The cutter bit has a very high diamond density and a very high service life. Different sizes are available for 8"-24" pipelines.

Properties

Usage: preparing cracks, joints and laterals, milling of deposits and intruding laterals

H1 Premium

  • Mid-hard segment binding
  • Very high diamond density
  • High cutting efficiency in most materials
  • Good cutting efficiency in reinforced concrete and cast iron
  • Very high service life

Properties

Usage: preparing cracks, joints and laterals, milling of deposits and intruding laterals

H1 Premium

  • Mid-hard segment binding
  • Very high diamond density
  • High cutting efficiency in most materials
  • Good cutting efficiency in reinforced concrete and cast iron
  • Very high service life

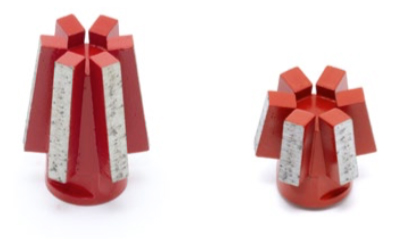

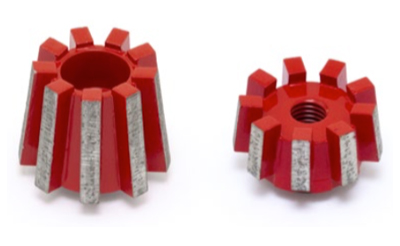

Diamond Taper Milling Cutter, rotation-optimized

Item DN Inch Ø mm Height mm Segments
20001 P 8-12 52/46 25 9
20004 P 12-24 52/42 40 9
20027 P 8-12 36/28 32 6
20013 P 12-24 38/28 53 6
